Model 262 桌面反射計 Model 262 Reflectometer

262 Console262型反射儀是為光亮電鍍工業測量在不同位置的反射率，在旋轉鋁曲面上，用于路燈和其他反射器。這種緊湊的臺式儀器易于使用和簡單的校準，從而為生產人員提供了一個快速的手段，以確保質量的反射器正在處理。

儀器采用星載反射率標準校準.測量是通過觸摸被測表面的軟探針來進行的。反射率立即顯示在31/2位亮紅色數字儀表上。軟探頭通過光纖連接到儀器上。大多數反射器被用來照亮一個區域，以提高夜間對眼睛的能見度。因此，反射計具有與眼睛相似的光譜(光)響應。

所述照明源為白光LED，該白光LED被電子斬波(無移動部件)，并同步解調以提供不受室內光線影響的系統。

262型號如下：訂購指定型號
262：反射計(單通道)
262(5)：5通道反射計
262 T：透射計(單通道)
262D：漫射透射計
262 T/R： 反射計和透射計


Model 262 桌面反射計 Model 262 Reflectometer

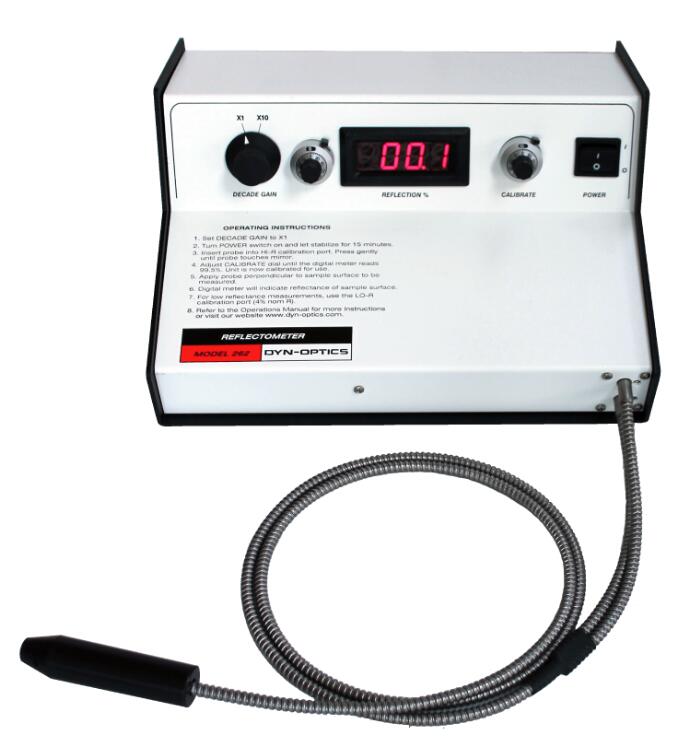

262 Console262 ConsoleThe Model 262 Reflectometer was developed for the Bright Plating industry to measure reflectance at various locations on a spun aluminum curved surface for streetlight and other reflectors. This compact desktop instrument is easy to use and simple to calibrate thereby providing production people with a rapid means to assure quality of the reflectors being processed.

The instrument is calibrated with an on-board reflectance standard. Measurements are made by touching a soft probe to the surface being measured. The reflectance displays immediately on a 31/2 digit bright red digital meter. The soft probe is connected to the instrument by fiber optics. Most reflectors are used to illuminate an area to improve visibility at night for the eye. Thus, the reflectometer has similar spectral (photopic) response as the eye.

The illumination source is a white light LED that is electronically chopped (with no moving parts) and synchronously demodulated to provide a system that is not affected by room light.

The Model 262 is available in the following configurations:

Model：Configuration
262：Reflectometer (single channel)
262(5)：5-Channel Reflectometer
262T：Transmissometer (single channel)
262D：Diffuse Transmissometer
262T/R：Reflectometer & Transmissometer
These modestly priced instruments have been provided to a number of plating facilities in the continental United States and overseas. Call, write, FAX or email for additional technical information, specifications, or price quotation.
